In-Memory, GPU, and NVM Database Systems
Outline
In-Memory Database System ? What it it ?
- The cost of transient memory has been continuously decreasing and the amount of transient memory that can be used by a database server has been continuously increasing
- Many databases of modest size can now be comfortably be stored within the transient memory of a single server
- An In-Memory database (IMDB) stores data in a computer's transient memory instead of persistent storage to produce quicker response times
- A central problem is how to make data stored for a long time in transient memory safe
- In a traditional database system, COMMIT operation the writes the modifications performed on a database to a transaction log in persistent storage
- Taking full advantage of a large transient memory system requires an architecture of database system that makes data persistent despite a power failure
In-Memory Database System ? What it it ?
- In-Memory database systems must address the following architectural problems
- Cache-less architecture because there is no point caching in memory what is already stored in memory
- Alternative persistence model to ensure that no data loss occurs due to power failure
- In-memory databases use the following techniques to ensure that data kept in transient memory is not lost
- Replicating data on other systems
- Writing from time to time complete database images to persistent storage
- Writing out the outcomes of transactions to an append-only persistent storage
In-Memory, GPU, and NVM Database Systems
Outline
In-Memory Database Oracle 19c

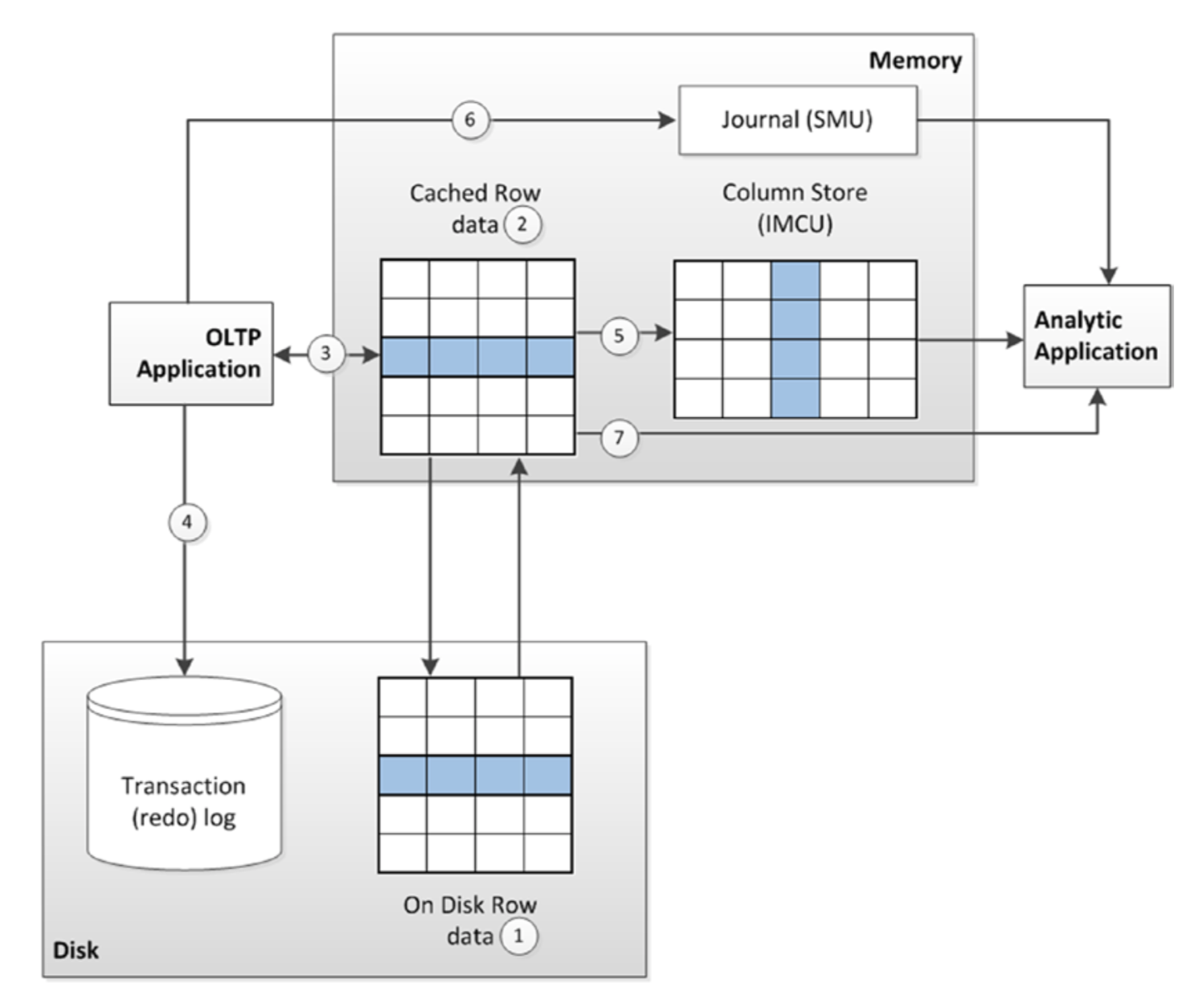

- Oracle 19c In-Memory architecture
In-Memory Database Oracle 19c
- Persistence is achieved through the following actions
- (1) Data is maintained in disk files (1) and ...
- (2) ... it is cached in memory
- (3) An OLTP application primarily reads and writes from memory
- (4) Any committed transactions are written immediately to the transaction log on disk
- (5) When required or as configured, row data is loaded into a columnar representation for use by analytic applications
- (6) Any transactions that are committed once the data is loaded into columnar format are recorded in a journal
- (7) Analytic queries access the journal to determine if they need to read updated data from the row store or possibly rebuild the column
In-Memory Database Oracle 19c
- In-Memory Database uses In-Memory Area located in System Global Area (SGA)
- In-Memory Areais subdivided into 2 pools: 1MB pool and 64K pool
- 1MB pool stores columnar formatted data, 64K pool stores metadata
SELECT POOL, ALLOC_BYTES, USED_BYTES, POPULATE_STATUS FROM V$INMEMORY_AREA;
ALTER SYSTEM SET INMEMORY_SIZE=300M SCOPE=SPFILE;
In-Memory Database Oracle 19c
- Note, that the system must be shutdown and restarted when an option SCOPE=SPFILE is used !
POOL ALLOC_BYTES USED_BYTES -------------------------- ----------- ---------- 1MB POOL 217055232 0 64KB POOL 79691776 0
ALTER TABLESPACE USERS DEFAULT INMEMORY;
ALTER TABLE LINEITEM INMEMORY;
In-Memory Database Oracle 19c
- Explaining query processing plan of SELECT statement that uses LINEITEM table
EXPLAIN PLAN FOR SELECT L_EXTENDEDPRICE FROM LINEITEM; --------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | --------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1800K| 10M| 12148 (1)| 00:00:01 | | 1 | TABLE ACCESS INMEMORY FULL| LINEITEM | 1800K| 10M| 12148 (1)| 00:00:01 | ---------------------------------------------------------------------------------------
ALTER TABLE ORDERS INMEMORY NO INMEMORY(O_TOTALPRICE);
ALTER TABLE LINEITEM NO INMEMORY;
In-Memory, GPU, and NVM Database Systems
Outline
GPU Database systems
- Graphical Processing Unit (GPU) database systems use GPU chipset technology for parallel processing of data analytics queries mainly computed at Data Warehousing systems
- GPU database systems have been on the market for a few years and slowly became adopted in the high-performance computing areas
- Most GPU databases have a master-slave architecture where a central CPU-based node submits the subqueries in parallel to an array of GPU-accelerated database instances, each on a separate server
- The individual servers execute their subqueries in parallel, send and result sets back to the master node
- The master node then combines them and sends the final result back to the client
- GPU database system works best when you have data analytics applications that can be easily broken down into parallelized tasks
GPU Database systems
- The existing systems
- Brytlyt: built on PostgreSQL, can cost-effectively query multibillion row datasets in seconds, easily scalable, supports additions and removals of GPU-acceleration nodes, optimized for real-time insights on large and streaming data sets
- BlazingDB: processes simple SQL queries on massive data sets, optimized for data warehousing workloads, its SQL engine runs on a cluster of distributed GPU servers
- Kinetica: uses in-memory storage and distributed processing, up to 6,000 cores in parallel, processes SQL queries on billions of rows in microseconds, provides native support for geospatial objects and it comes with a suite of geospatial functions
- MapD: uses in-memory storage, compiles SQL queries with a just-in-time LLVM-based compiler into machine code that can run on Nvidia GPUs as well as X86 or Power CPUs, parallelizes computation across multiple GPUs and CPUs
- SQream: SQL based column-oriented database system, processes trillions of rows in near real-time, uses CPUs as well as massively parallel multi-core GPU nodes, uses automatic and transparent partitioning, allows for selective access to the required subset of columns
In-Memory, GPU, and NVM Database Systems
Outline
Non-Volatile Memory Database System ? What is it ?
- Non-Volatile Memory (NVM) is a name for a group of technologies such as Phase-Change RAM (PCRAM), Magnetic RAM (MRAM) and Resistive RAM (RRAM) that enable memory chips that are non-volatile (persistent), require low energy, and have density and latency closer to current DRAM chips
- A commercial implementation of NVM is the Intel® OptaneTM DC Persistent Memory Module (simply called as Optane Memory, March 2019)
- NVM has 4 times faster Input/Output Operations Per Second (IOPs)than SSD and seek time for data is ten times faster
- NVM supports byte-addressable loads and stores with low latency and it can be used for efficient architecture of In-Memory database systems
- NVM Database System is an In-Memory Database System implemented in Non-Volatile Memory
In-Memory, GPU, and NVM Database Systems
Outline
Non-Volatile Memory
- Important properties of Non-Volatile Memory
- Byte-Addressability: NVM supports byte-addressable loads and stores, no need to transfer data in blocks
- High Write Throughput: NVM delivers more than an order of magnitude higher write throughput compared to SSD
- Read-Write Asymmetry: in certain NVM technologies, write take longer to complete when compared to read and excessive writes to a single memory cell can destroy it
In-Memory, GPU, and NVM Database Systems
Outline
Architecture of NVM Database Systems
- NVM-based architectures have several key advantages over the current in-memory systems
- NVM-based architecture adopts a logging and recovery protocol that improves the availability of the DBMS by 100 times when compared with the write-ahead logging protocol
- NVM-based storage engines utilize the durability and byte-addressability properties of NVM to assure better persistent storage utilization
- NVM-based storage engines use the index tailored for NVM
- Data buffer management policy uses the direct-addressability property of NVM to reduce data migration
- NVM-based architecture improves the runtime performance, availability, operational cost, and development cost of DBMS
Architecture of NVM Database Systems
- There are two possible applications of NVM in a database system
- (1) Database system only has NVM storage with no DRAM (NVM-only architecture)
- (2) NVM is added as another level of the storage hierarchy between DRAM and SSD(NVM+DRAM architecture)
- Both approaches can be applied to in-memory oriented database systems and storage (SSD/HDD) oriented database systems
- The experiments show that in-memory oriented systems are better suited to take advantage of NVM and outperform storage oriented systems
- Both in-memory oriented and storage oriented systems are doing unnecessary work in their storage and recovery methods, since all writes to NVM are durable
- It means that neither system is ideally suited for NVM
- Instead, a new system is needed with lightweight recovery processes designed to utilize the non-volatile property of NVM
References
- G. Harrison, Next Generation Databases NoSQL, NewSQL, and Big Data, Apress, 2015 Chapter 6, Column Databases
- Oracle Database In-Memory with Oracle Database 19c, Technical Overview, February 2019
- J. Arulraj, A. Pavlo, Non-Volatile Memory Database Management Systems, Synthesis Lectures on Data Management, Morgan & Claypool, 2019
