SELECT statement (4)

Outline

Outer Join queries

  • Left Outer Join operation joins the rows from two relational tables and appends to the results of join all rows from the left argument of the operation that cannot be joined with any row from the right argument of the operation with NULLs used in all places where the values are missing
  • Right Outer Join operation joins the rows from two relational tables and appends to the results of join all rows from the right argument of the operation that cannot be joined with any row from the left argument of the operation with NULLs used in all places where the values are missing
  • Full Outer Join operation unions the result of left outer join operation and the results of right outer join operation
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

Outer join queries

  • Sample database
      CREATE TABLE DEPARTMENT(
 name               VARCHAR(50)        NOT NULL,
 code               CHAR(5)            NOT NULL,
 total_staff_number DECIMAL(2)         NOT NULL,
 chair              VARCHAR(50)            NULL,
 budget             DECIMAL(9,1)       NOT NULL,
  CONSTRAINT dept_pkey PRIMARY KEY(name),
  CONSTRAINT dept_ckey1 UNIQUE(code),
  CONSTRAINT dept_ckey2 UNIQUE(chair),
  CONSTRAINT dept_check1 CHECK (total_staff_number BETWEEN 1 AND 50) );
      CREATE TABLE COURSE(
 cnum               CHAR(7)           NOT NULL,
 title              VARCHAR(200)      NOT NULL,
 credits            DECIMAL(2)        NOT NULL,
 offered_by         VARCHAR(50)           NULL,
  CONSTRAINT course_pkey PRIMARY KEY(cnum),
  CONSTRAINT course_check1 CHECK (credits IN (6, 12)),
  CONSTRAINT course_fkey1 FOREIGN KEY(offered_by)
                        REFERENCES DEPARTMENT(name) ON DELETE CASCADE );
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

Outer join queries

  • Consider the following query: find the names of departments together with the titles of all courses offered by each department
      SELECT name, title
FROM DEPARTMENT JOIN COURSE
                ON name = offered_by;
  • What about the departments that offer no courses and what about the courses not assigned to any department ?
  • JOIN operation eliminates from the left argument all rows that cannot be joined with any row from the right argument and ...
  • JOIN operation eliminates from the right argument all rows that cannot be joined with any row from the left argument and ...
  • sometimes, we would like to include into an answer the rows from the left or right arguments, that cannot be joined with any row from the opposite argument
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

SELECT statement (4)

Outline

Left Outer Join queries

  • Left Outer Join operation joins the rows from two relational tables and appends to the results of join all rows from the left argument of the operation that cannot be joined with any row from the right argument of the operation with NULLs used in all places where the values are missing

    • JOIN

In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

Left Outer Join queries

  • Left Outer Join operation joins the rows from two relational tables and appends to the results of join all rows from the left argument of the operation that cannot be joined with any row from the right argument of the operation with NULLs used in all places where the values are missing

    • JOIN

In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

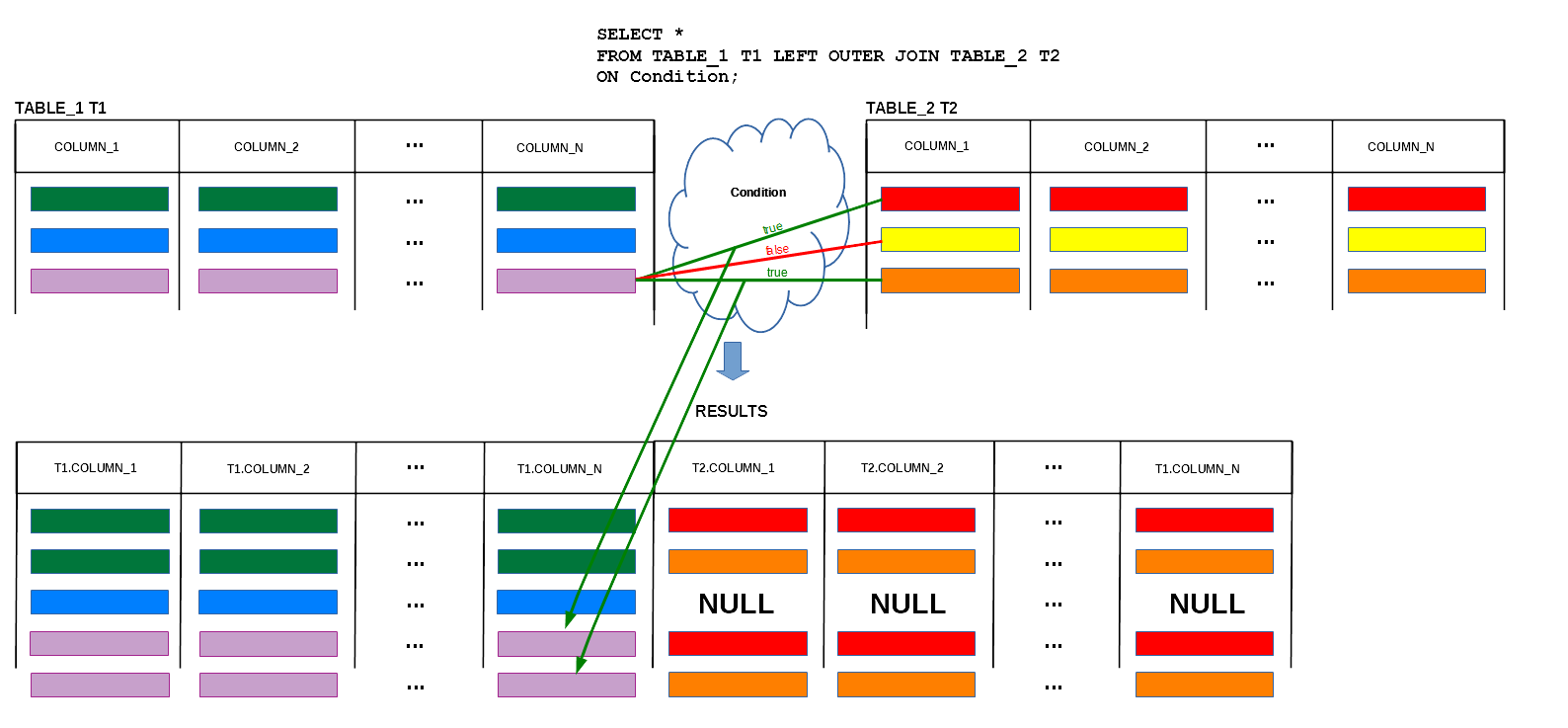

Left Outer Join queries

  • Left Outer Join operation joins the rows from two relational tables and appends to the results of join all rows from the left argument of the operation that cannot be joined with any row from the right argument of the operation with NULLs used in all places where the values are missing

    • JOIN

In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

Left outer join queries

  • Consider an extended version of the previous query: Find the names of departments together with the titles of all courses offered by each department and include the names of departments that offer no courses at all

SELECT name, title
FROM DEPARTMENT LEFT OUTER JOIN COURSE
	        ON name = offered_by;
  • An operation of LEFT OUTER JOIN includes into the results all rows from the left argument of the operation
  • If a row from the left argument of the operation cannot be joined with any row from the right argument of the operation then it is extended with NULLs and it is appended to the result
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

Left outer join queries

  • What are the outcomes of the following SELECT statement ?

SELECT name, title
FROM DEPARTMENT LEFT OUTER JOIN COURSE
	        ON name = offered_by;

+-------------+------+-------+--------+--------+     +---------+-----------+---------+-------------+
| name        | code | t_s_n | chair  | budget |     | cnum    | title     | credits | offered_by  |
+-------------+------+-------+--------+--------+     +---------+-----------+---------+-------------+
| Mathematics | MATH |     7 | Peter  |  200.0 |     | MATH101 | Calculus  |       6 | Mathematics |
| Physics     | PHY  |     5 | Albert |  100.1 |     | PHYS101 | Mechanics |       6 | Physics     |
| Biology     | BIOL |     0 | Mary   |    0.0 |     | MATH300 | Topology  |      12 | NULL        |
+-------------+------+-------+--------+--------+     +---------+-----------+---------+-------------+
  • The results of LEFT OUTER JOIN operation

+-------------+------+-------+--------+--------+---------+-----------+---------+-------------+
| name        | code | t_s_n | chair  | budget | cnum    | title     | credits | offered_by  |
+-------------+------+-------+--------+--------+---------+-----------+---------+-------------+
| Mathematics | MATH |     7 | Peter  |  200.0 | MATH101 | Calculus  |       6 | Mathematics |
| Physics     | PHY  |     5 | Albert |  100.1 | PHYS101 | Mechanics |       6 | Physics     |
| Biology     | BIOL |     0 | Mary   |    0.0 | NULL    | NULL      |    NULL | NULL        |
+-------------+------+-------+--------+--------+---------+-----------+---------+-------------+
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

Left outer join queries

  • What are the outcomes of the following SELECT statement ?

SELECT name, title
FROM DEPARTMENT LEFT OUTER JOIN COURSE
	        ON name = offered_by;
  • The final results of PROJECTION on the columns name and title

+-------------+-----------+
| name        | title     |
+-------------+-----------+
| Mathematics | Calculus  |
| Physics     | Mechanics |
| Biology     | NULL      |
+-------------+-----------+
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

SELECT statement (4)

Outline

Right outer join queries

  • Consider the following query: find the names of departments together with the titles of all courses offered by each department and include the titles of all courses do not assigned to any department

SELECT name, title
FROM DEPARTMENT RIGHT OUTER JOIN COURSE
ON name = offered_by;
  • An operation of RIGHT OUTER JOIN includes into the results all rows from the right argument of the operation
  • If a row from the right argument of the operation cannot be joined with any row from the left argument of the operation then it is extended with NULLs and it is appended to the result
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

Right outer join queries

  • What are the outcomes of the following SELECT statement ?

SELECT name, title
FROM DEPARTMENT RIGHT OUTER JOIN COURSE
	        ON name = offered_by;

+-------------+------+-------+--------+--------+     +---------+-----------+---------+-------------+
| name        | code | t_s_n | chair  | budget |     | cnum    | title     | credits | offered_by  |
+-------------+------+-------+--------+--------+     +---------+-----------+---------+-------------+
| Mathematics | MATH |     7 | Peter  |  200.0 |     | MATH101 | Calculus  |       6 | Mathematics |
| Physics     | PHY  |     5 | Albert |  100.1 |     | PHYS101 | Mechanics |       6 | Physics     |
| Biology     | BIOL |     0 | Mary   |    0.0 |     | MATH300 | Topology  |      12 | NULL        |
+-------------+------+-------+--------+--------+     +---------+-----------+---------+-------------+
  • The results of RIGHT OUTER JOIN operation

+-------------+------+-------+--------+--------+---------+-----------+---------+-------------+
| name        | code | t_s_n | chair  | budget | cnum    | title     | credits | offered_by  |
+-------------+------+-------+--------+--------+---------+-----------+---------+-------------+
| Mathematics | MATH |     7 | Peter  |  200.0 | MATH101 | Calculus  |       6 | Mathematics |
| Physics     | PHY  |     5 | Albert |  100.1 | PHYS101 | Mechanics |       6 | Physics     |
| NULL        | NULL |  NULL | NULL   |   NULL | MATH300 | Topology  |      12 | NULL        |
+-------------+------+-------+--------+--------+---------+-----------+---------+-------------+
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

Right outer join queries

  • What are the outcomes of the following SELECT statement ?

SELECT name, title
FROM DEPARTMENT RIGHT OUTER JOIN COURSE
	        ON name = offered_by;
  • The final results of PROJECTION on the columns name and title

+-------------+-----------+
| name        | title     |
+-------------+-----------+
| Mathematics | Calculus  |
| NULL        | Topology  |
| Physics     | Mechanics |
+-------------+-----------+
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

SELECT statement (4)

Outline

Full outer join queries

  • Full outer join SQL query is equivalent to a union of the results from left outer join and right outer join
  • Consider the following query: find the names of departments together with the titles of all courses offered by each department, and ...
  • ... include the names of departments that offer no courses and ...
  • ... include the titles of courses not offered by any department

SELECT name, title
FROM DEPARTMENT FULL OUTER JOIN COURSE
                ON name = offered_by;
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

Full outer join queries

  • MySQL does not support full outer join
  • Full outer join can be simulated in MySQL by UNION of SELECT statements that implement left outer join and right outer join


SELECT name, title
FROM DEPARTMENT LEFT OUTER JOIN COURSE
              ON name = offered_by
UNION
SELECT name, title
FROM DEPARTMENT RIGHT OUTER JOIN COURSE
                ON name = offered_by;
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

SELECT statement (4)

Outline

Grouping revisited

  • Do you remember the following query: Find the names of all departments together with the total number of all courses offered by each department

SELECT offered_by, COUNT(*)
FROM COURSE
GROUP BY offered_by;
  • What about the departments that offer no courses ?
  • Find the names of all departments together with the total number of all courses offered by each department and list the names of departments that offer no courses with a value 0

SELECT name, count(title)
FROM DEPARTMENT LEFT OUTER JOIN COURSE
                ON DEPARTMENT.name = COURSE.offered_by
GROUP BY name;
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023

Grouping revisited

  • Find the names of all departments together with the total number of all courses offered by each department and list the names of departments that offer no courses with a value 0

SELECT name, count(title)
FROM DEPARTMENT LEFT OUTER JOIN COURSE
                ON DEPARTMENT.name = COURSE.offered_by
GROUP BY name;
  • Note, that:
    • we must use a relational table DEPARTMENT to get the names of all departments
    • we must use LEFT OUTER JOIN (or RIGHT OUTER join if a name of relational table DEPARTMENT is on the right hand side of OUTER JOIN operation) to include the names of departments that offer no courses
    • we must count the values in a column title with COUNT(title) in the results of LEFT OUTER JOIN (and not the rows with COUNT(*))
In HTML view press 'p' to see the lecture notes
TOP         Created by Janusz R. Getta, CSIT115 Data Management and Security, Autumn 2023
