Query Processing Plans
Outline
Syntax tree

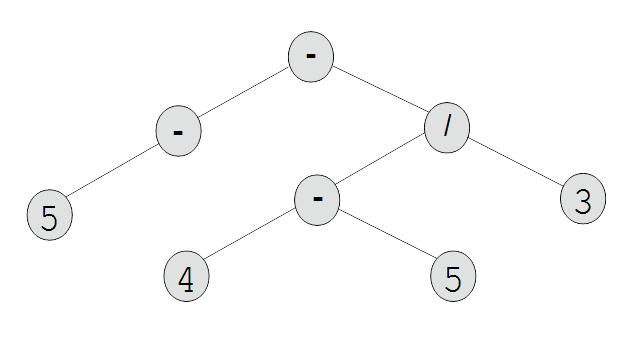

- Syntax tree is a two dimensional visualization of an expression that consists of operations and arguments
(-5 - (4 - 5)/3
Query Processing Plans
Outline
Left/right deep syntax tree

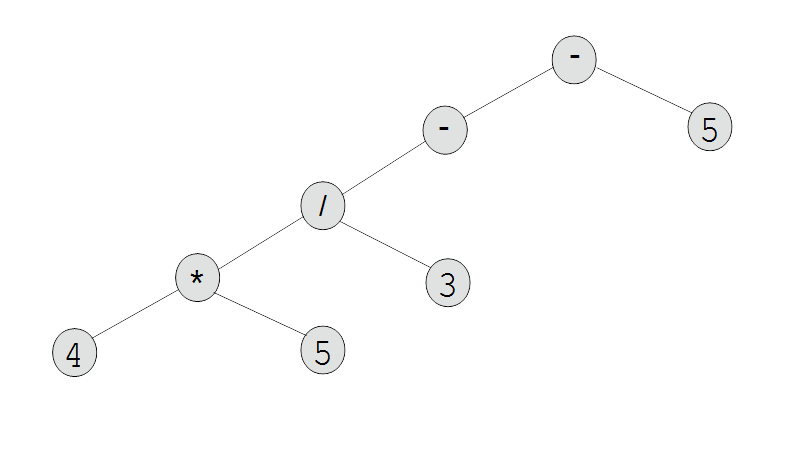

- Left deep syntax tree is a syntax tree such that the right argument of each operation is an atomic value
(-((4 * 5) / 3)) - 5
Left/right deep syntax tree

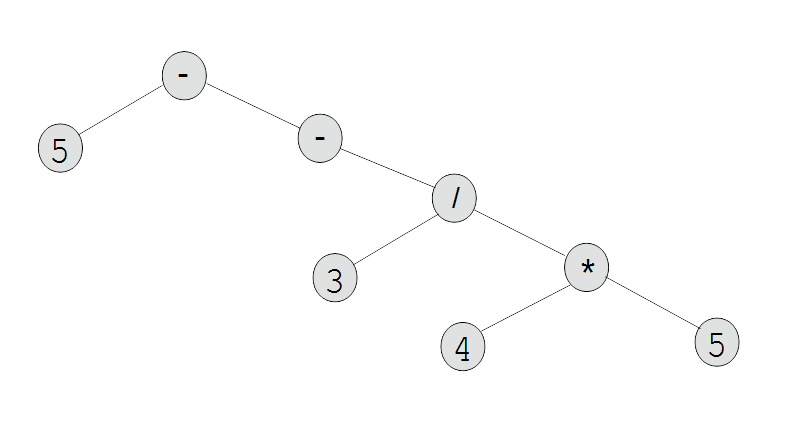

- Right deep syntax tree is a syntax tree such that the
left argument of each operation is an atomic value
5 - ( - (3 / ( 4 * 5 )))
Left/right deep syntax tree

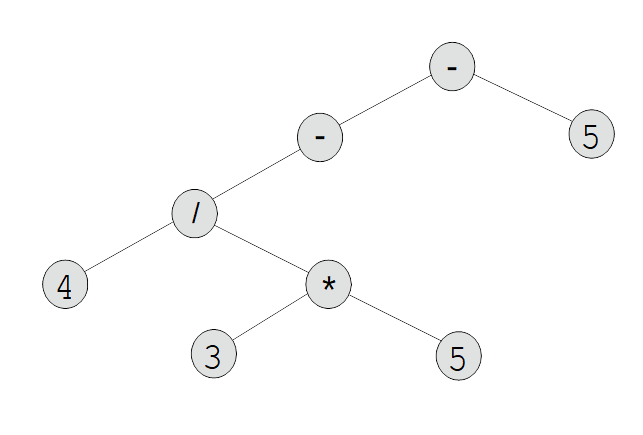

- Left/right deep syntax tree is a syntax tree such that the
right/left argument of each operation is an atomic value
(-(4 / ( 3 * 5 ))) - 5
Query Processing Plans
Outline
EXPLAIN PLAN statement of SQL
- EXPLAIN PLAN statement of SQL lists a query processing plan
created by a query optimizer for a given SQL statement

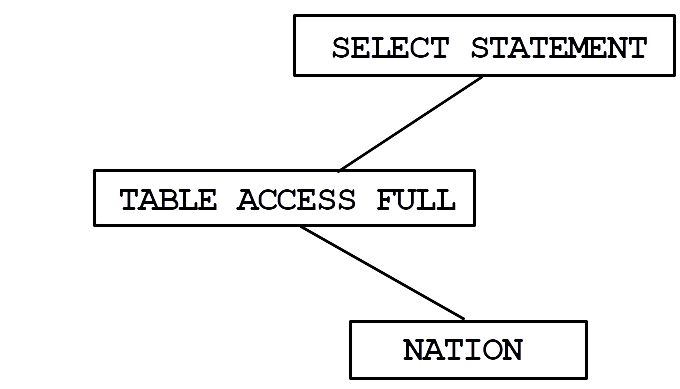

EXPLAIN PLAN FOR SELECT * FROM NATION;
SELECT * FROM TABLE(DBMS_XPLAN.DISPLAY); or @showplan
PLAN_TABLE_OUTPUT -------------------------------------------------------------------------- Plan hash value: 79620726 -------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | -------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 25 | 2475 | 9 (0) | 00:00:01 | | 1 | TABLE ACCESS FULL| NATION | 25 | 2475 | 9 (0) | 00:00:01 | --------------------------------------------------------------------------
Query Processing Plans
Outline
Interpretation of processing plan
-
PLAN_TABLE_OUTPUT ------------------------------------------------------------------------ Plan hash value: 79620726 -------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ------------------------------------------------------------------------ | 0 | SELECT STATEMENT | | 25 | 2475 | 9 (0) | 00:00:01 | | 1 | TABLE ACCESS FULL| NATION| 25 | 2475 | 9 (0) | 00:00:01 | --------------------------------------------------------------------------
EXPLAIN PLAN statement of SQL
-

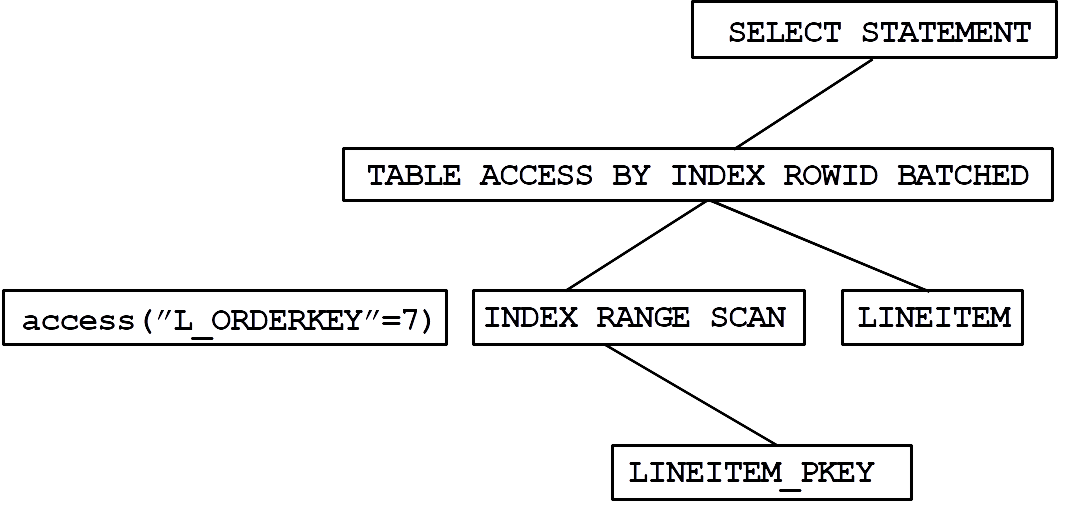

EXPLAIN PLAN FOR SELECT * FROM LINEITEM WHERE L_ORDERKEY = 7;
---------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ---------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 4 | 500 | 4 (0) | 00:00:01 | | 1 | TABLE ACCESS BY INDEX ROWID BATCHED | LINEITEM | 4 | 500 | 4 (0) | 00:00:01 | |* 2 | INDEX RANGE SCAN | LINEITEM_PKEY | 4 | | 3 (0) | 00:00:01 | ---------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): PLAN_TABLE_OUTPUT 2 - access("L_ORDERKEY"=7)
Interpretation of processing plan
-
---------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ---------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 4 | 500 | 4 (0) | 00:00:01 | | 1 | TABLE ACCESS BY INDEX ROWID BATCHED | LINEITEM | 4 | 500 | 4 (0) | 00:00:01 | |* 2 | INDEX RANGE SCAN | LINEITEM_PKEY | 4 | | 3 (0) | 00:00:01 | ---------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): PLAN_TABLE_OUTPUT 2 - access("L_ORDERKEY"=7)
EXPLAIN PLAN statement of SQL
-

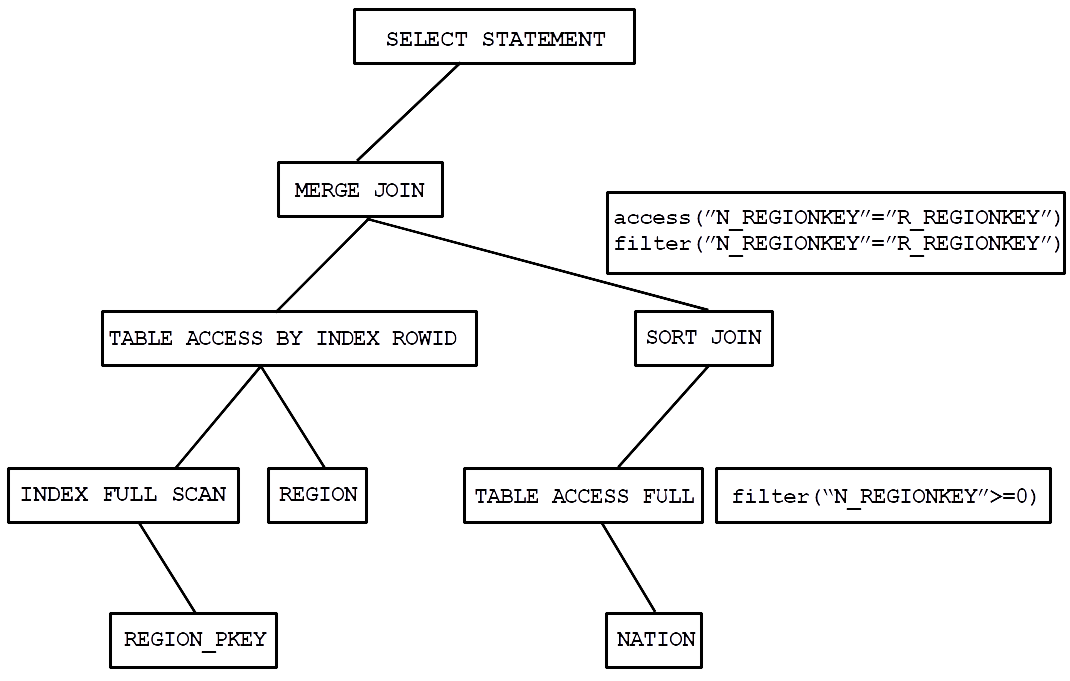

EXPLAIN PLAN FOR SELECT * FROM NATION JOIN REGION ON N_REGIONKEY = R_REGIONKEY;------------------------------------------------------------------------------------------ | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ------------------------------------------------------------------------------------------ | 0 | SELECT STATEMENT | | 25 | 4900 | 11 (0) | 00:00:01 | | 1 | MERGE JOIN | | 25 | 4900 | 11 (0) | 00:00:01 | | 2 | TABLE ACCESS BY INDEX ROWID | REGION | 5 | 485 | 2 (0) | 00:00:01 | | 3 | INDEX FULL SCAN | REGION_PKEY| 5 | | 1 (0) | 00:00:01 | |* 4 | SORT JOIN | | 25 | 2475 | 9 (0) | 00:00:01 | |* 5 | TABLE ACCESS FULL | NATION | 25 | 2475 | 9 (0) | 00:00:01 | ------------------------------------------------------------------------------------------ Predicate Information (identified by operation id): --------------------------------------------------- 4 - access("N_REGIONKEY"="R_REGIONKEY") filter("N_REGIONKEY"="R_REGIONKEY") 5 - filter("N_REGIONKEY">=0)
Interpretation of processing plan
-
------------------------------------------------------------------------------------------ | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ------------------------------------------------------------------------------------------ | 0 | SELECT STATEMENT | | 25 | 4900 | 11 (0) | 00:00:01 | | 1 | MERGE JOIN | | 25 | 4900 | 11 (0) | 00:00:01 | | 2 | TABLE ACCESS BY INDEX ROWID | REGION | 5 | 485 | 2 (0) | 00:00:01 | | 3 | INDEX FULL SCAN | REGION_PKEY| 5 | | 1 (0) | 00:00:01 | |* 4 | SORT JOIN | | 25 | 2475 | 9 (0) | 00:00:01 | |* 5 | TABLE ACCESS FULL | NATION | 25 | 2475 | 9 (0) | 00:00:01 | ------------------------------------------------------------------------------------------ Predicate Information (identified by operation id): --------------------------------------------------- 4 - access("N_REGIONKEY"="R_REGIONKEY") filter("N_REGIONKEY"="R_REGIONKEY") 5 - filter("N_REGIONKEY">=0)
EXPLAIN PLAN statement of SQL
-

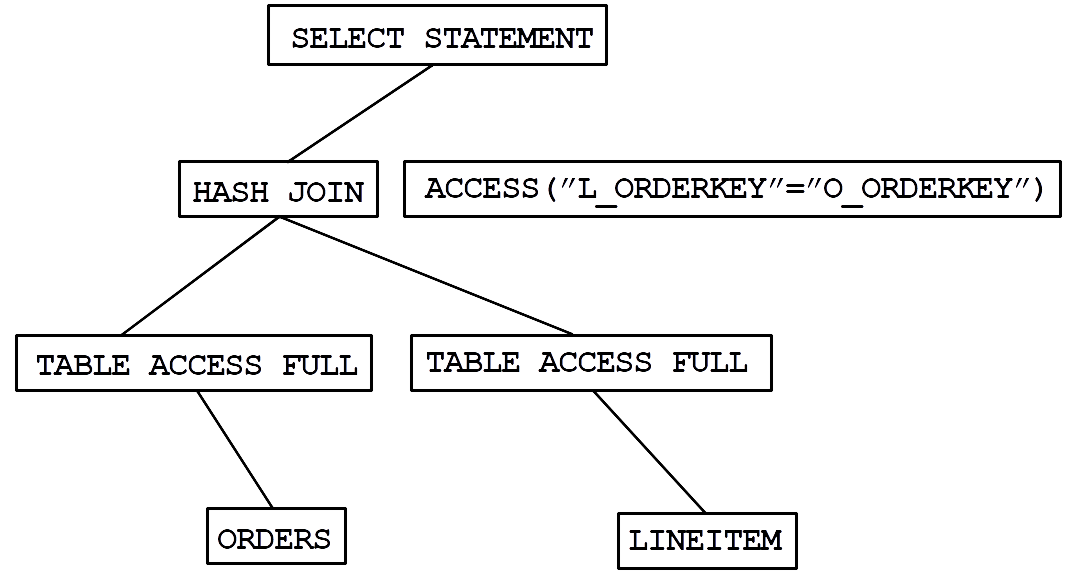

EXPLAIN PLAN FOR SELECT * FROM LINEITEM JOIN ORDERS ON L_ORDERKEY = O_ORDERKEY;
------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes |TempSpc| Cost (%CPU)| Time | ------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1776K | 396M | | 24979 (1) | 00:00:01 | |* 1 | HASH JOIN | | 1776K | 396M | 51M | 24979 (1) | 00:00:01 | | 2 | TABLE ACCESS FULL| ORDERS | 450K | 46M | | 1950 (1) | 00:00:01 | | 3 | TABLE ACCESS FULL| LINEITEM| 1800K | 214M | | 8788 (1) | 00:00:01 | ------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 1 - access("L_ORDERKEY"="O_ORDERKEY")
Interpretation of a plan
-
------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes |TempSpc| Cost (%CPU)| Time | ------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1776K | 396M | | 24979 (1) | 00:00:01 | |* 1 | HASH JOIN | | 1776K | 396M | 51M | 24979 (1) | 00:00:01 | | 2 | TABLE ACCESS FULL| ORDERS | 450K | 46M | | 1950 (1) | 00:00:01 | | 3 | TABLE ACCESS FULL| LINEITEM| 1800K | 214M | | 8788 (1) | 00:00:01 | ------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 1 - access("L_ORDERKEY"="O_ORDERKEY")
References
- Cookbook, How to find SQL processing plans and how to use hints ?
- SQL Tuning Guide, Part III Query Execution Plans
- L. Nossov, H. Ernst, V. Chupis, Formal SQL Tuning for Oracle Databases, Springer, 2016 (Available from UOW Library)
- Oracle® Database SQL Tuning Guide 19c
- G. Harrison Oracle Performance Survival Guide, Prentice Hall, 2010
